Sole-Verde

In stock

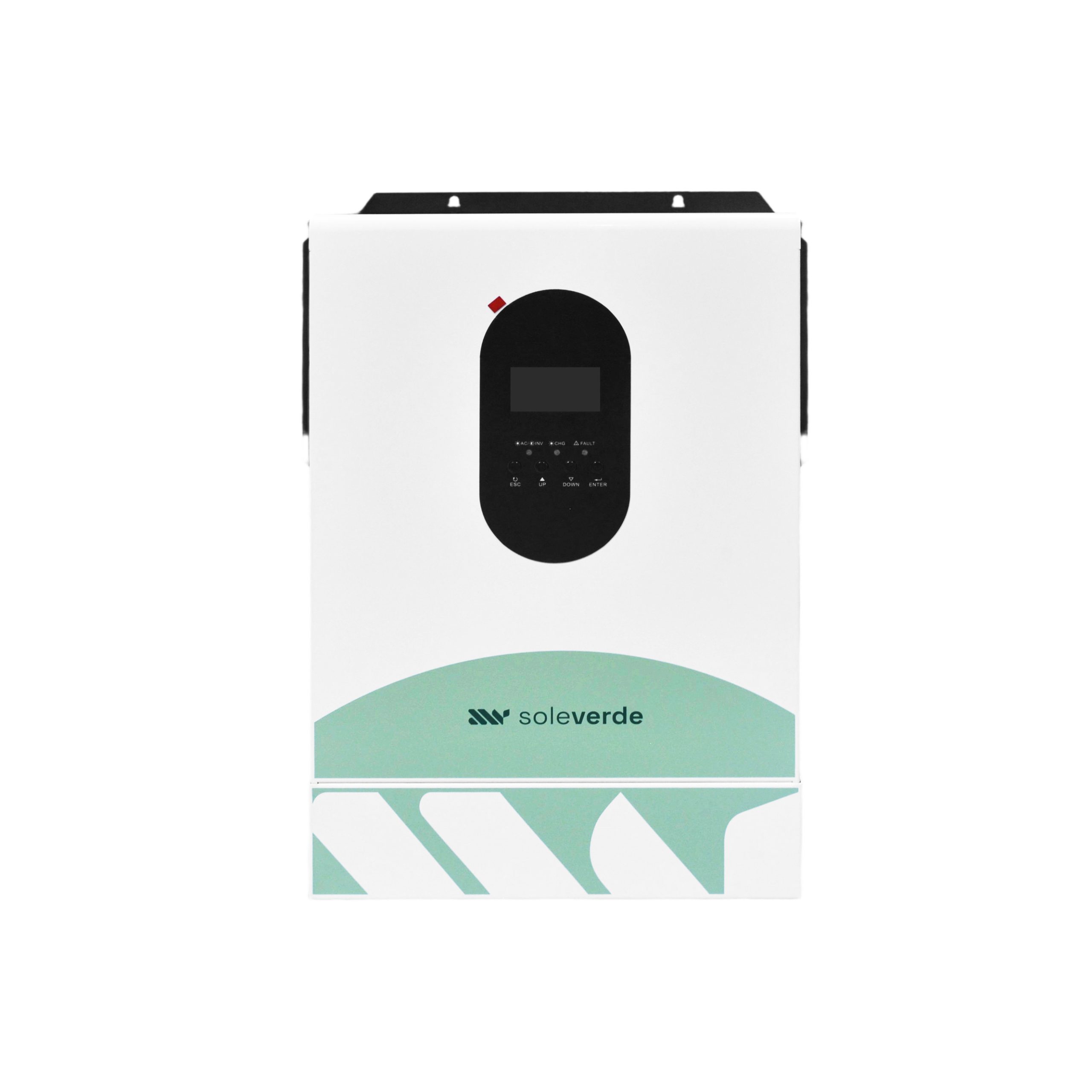

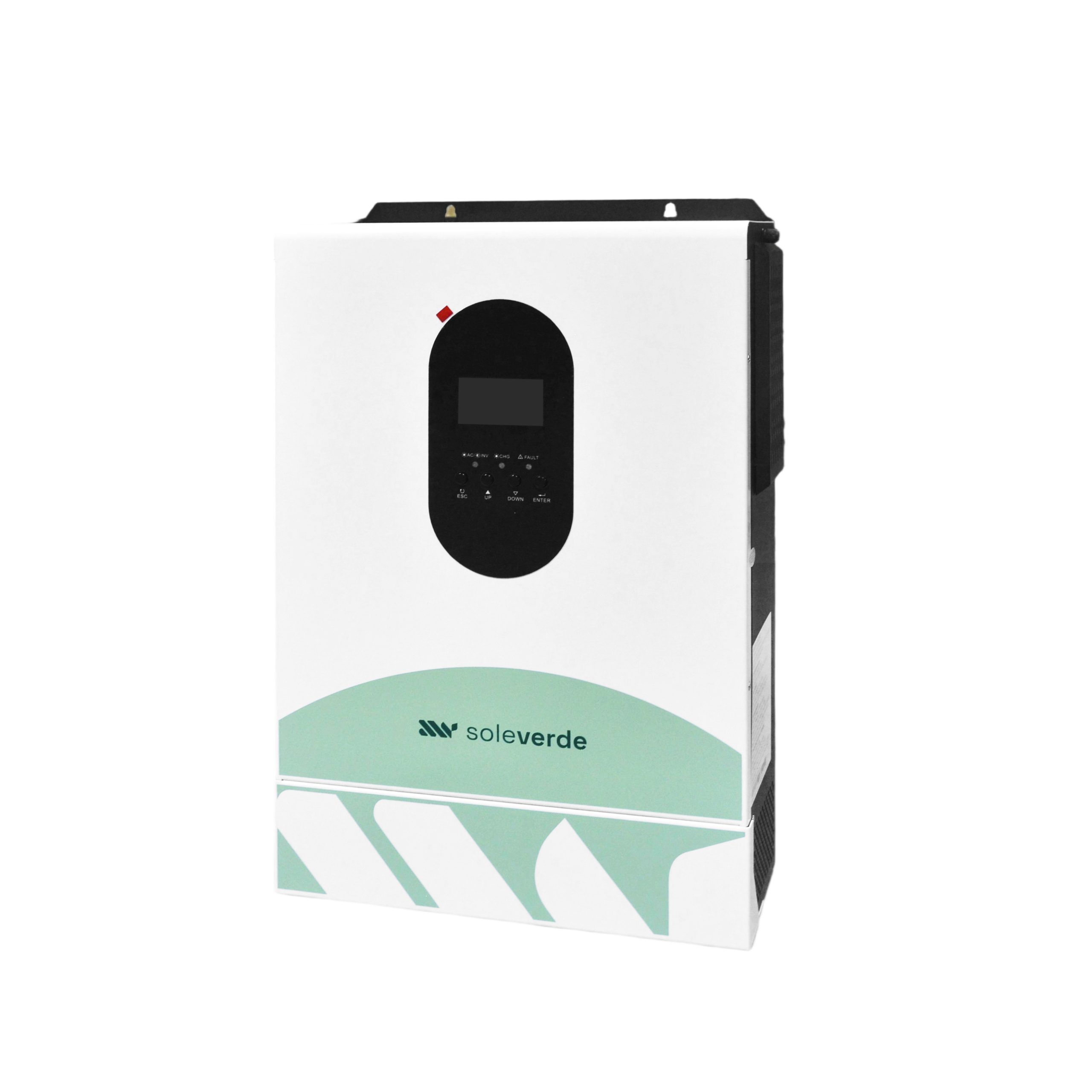

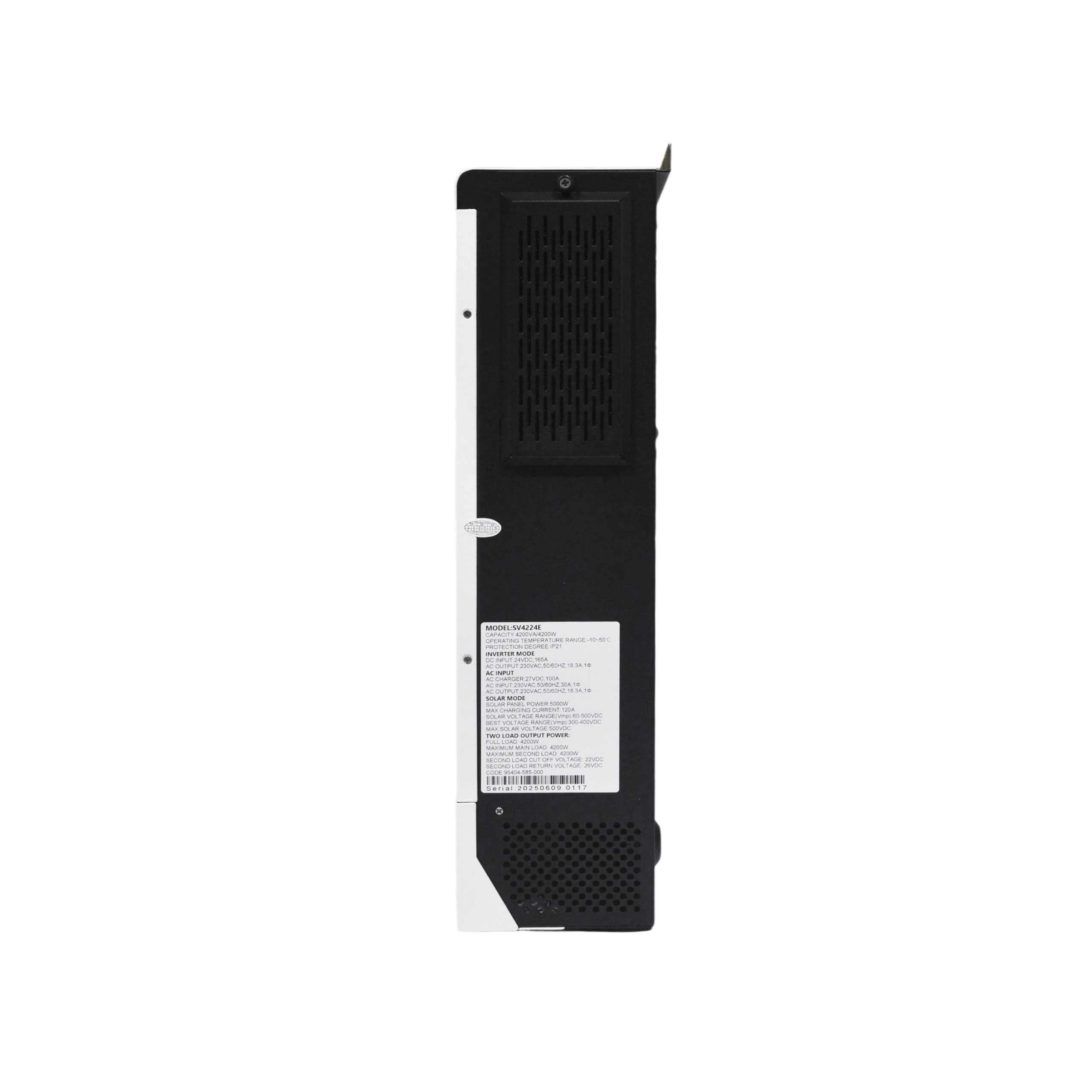

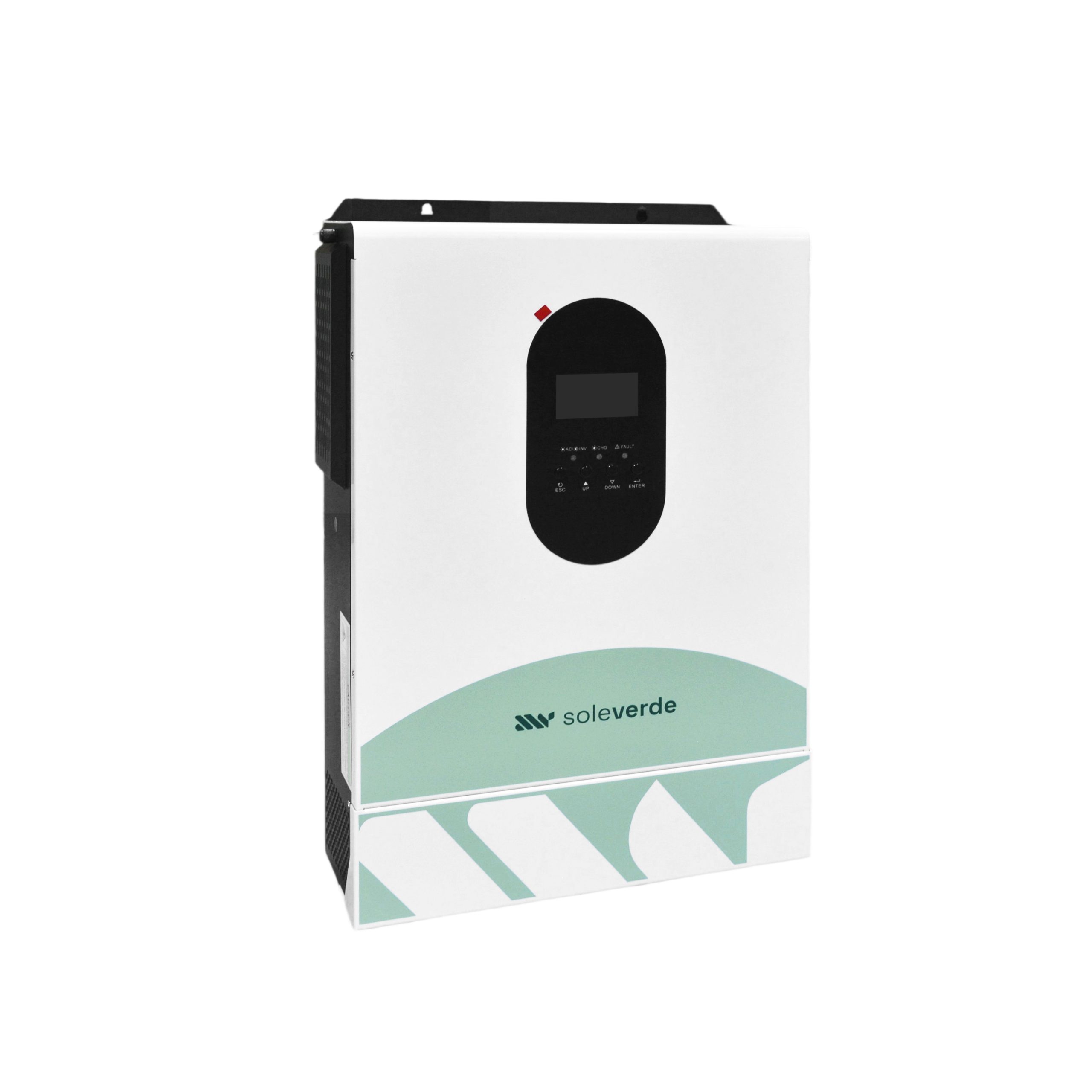

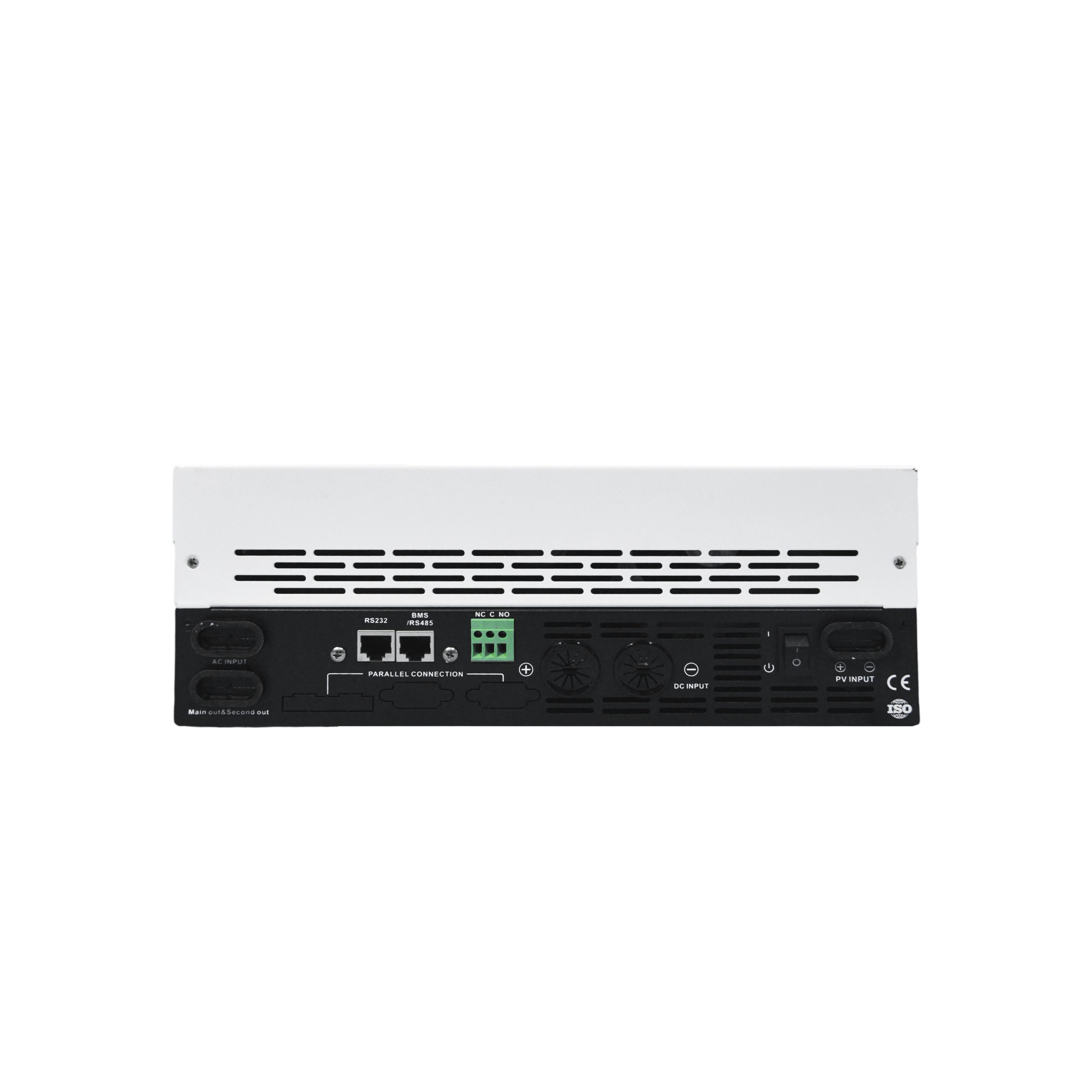

SV EDGE 4.2 KW/24V HYBRID INVERTER

SVEDGE 4.2KW Pure Sine Wave Inverter

The SVEDGE 4.2KW inverter delivers clean, stable pure sine wave power for reliable operation of sensitive electronics and household appliances. With optional WiFi remote monitoring, advanced safety protections, an HD status display, and a compact modern design, it provides intelligent control, dependable performance, and easy installation for residential and backup power applications.

Category:

Description

SVEDGE 4.2KW Pure Sine Wave Inverter – Reliable and Intelligent Power Solution

The SVEDGE 4.2KW inverter is designed to provide efficient, stable, and high-quality power for home energy systems, solar installations, and backup applications. Its pure sine wave output ensures smooth, low-distortion electricity comparable to utility power, making it safe for sensitive electronics and essential equipment. Combining intelligent monitoring, comprehensive protection features, and a user-friendly design, this inverter offers dependable performance and long-term reliability.

Key Features

Optional WiFi Remote Monitoring
Enables real-time system monitoring and control through a mobile application. Supports lithium battery communication, external WiFi connectivity, generator auto-start functionality, and remote parameter settings for convenient energy management.

Pure Sine Wave Output
Provides clean and stable power with minimal harmonic distortion to ensure safe, consistent operation of appliances, tools, and electronic devices.

Multiple Safety Protections
Equipped with output short-circuit protection and additional built-in safeguards to maintain secure and stable system operation while protecting connected equipment.

HD Display for Status Monitoring
Features a clear, high-definition screen that displays real-time load data and system information, allowing users to quickly monitor performance and adjust settings.

High Efficiency and Stable Performance
Delivers consistent voltage output and efficient energy conversion for reliable, long-lasting operation across various applications.

Compact and Modern Design
A streamlined, space-saving structure with a clean, rounded appearance that simplifies installation and enhances overall aesthetics.

Certified Quality Assurance
Manufactured in compliance with international standards and supported by complete certifications to ensure safety, reliability, and consistent performance

Model SVEDGE4024 SVEDGE6248
AC Input
Input Formation L+N+PE
AC Input 220/230/240VAC
Input Voltage Range 90-280VAC±3V(Normal Mode)    170-280VAC±3V (UPS Mode)
Frequency 50/60Hz(Adaptive)
Inverter Output
Rated Power 4000W 6200W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Wave Pure Sine Wave
Transfer Time(Adjustable) 10ms for Computer Equipment,20ms for Household Equipment
Peak Power 8000VA 12400VA
Overload Ability Battery Mode: 11s@105%~150% Load; 2s@150%~200% Load;   400ms@>200% Load
Grid connected   Operation
Output Voltage 220/230/240VAC
Grid Voltage Range 170-265VAC
Grid Frequency Range 49-51±1Hz/59-61±1Hz
Output Current 17.4A 26.9A
Power Factor Range >0.99
Max efficiency (DC/AC) 0.98
Battery Charging
Rated Voltage 24VDC 48VDC
Constant Charging Voltage 28.2VDC 56.4VDC
Float Charging Voltage 27VDC 54VDC
PV Charging Method MPPT MPPT
PV Input &   Charging
Max PV Input 5000W 6200W
MPPT Tracking Range 60~500VDC 60~500VDC
MAX PV Input Voltage 500VDC 500VDC
MAX PV Charge Current 120A 120A
MAX AC Charge Current 100A 100A
MAX Charge Current 120A 120A
Communication &   Display
LCD Can display operating mode/load/input/output
RS232 5PIN/Pitch2.54mm,Baud Rate 2400
Expansion Slot Communication Interface Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm
Parallel Interface Not Support Parallel
Environmental
Operating Temperature -10°C~50°C
Storage Temperature -15°C~60°C
Ork Altitude No more than 1000m, If 1000m<,Rate power will lower, MAX   4000m, Refer
Operating Environment Humidity Non Condensing
Noise ≤50dB
