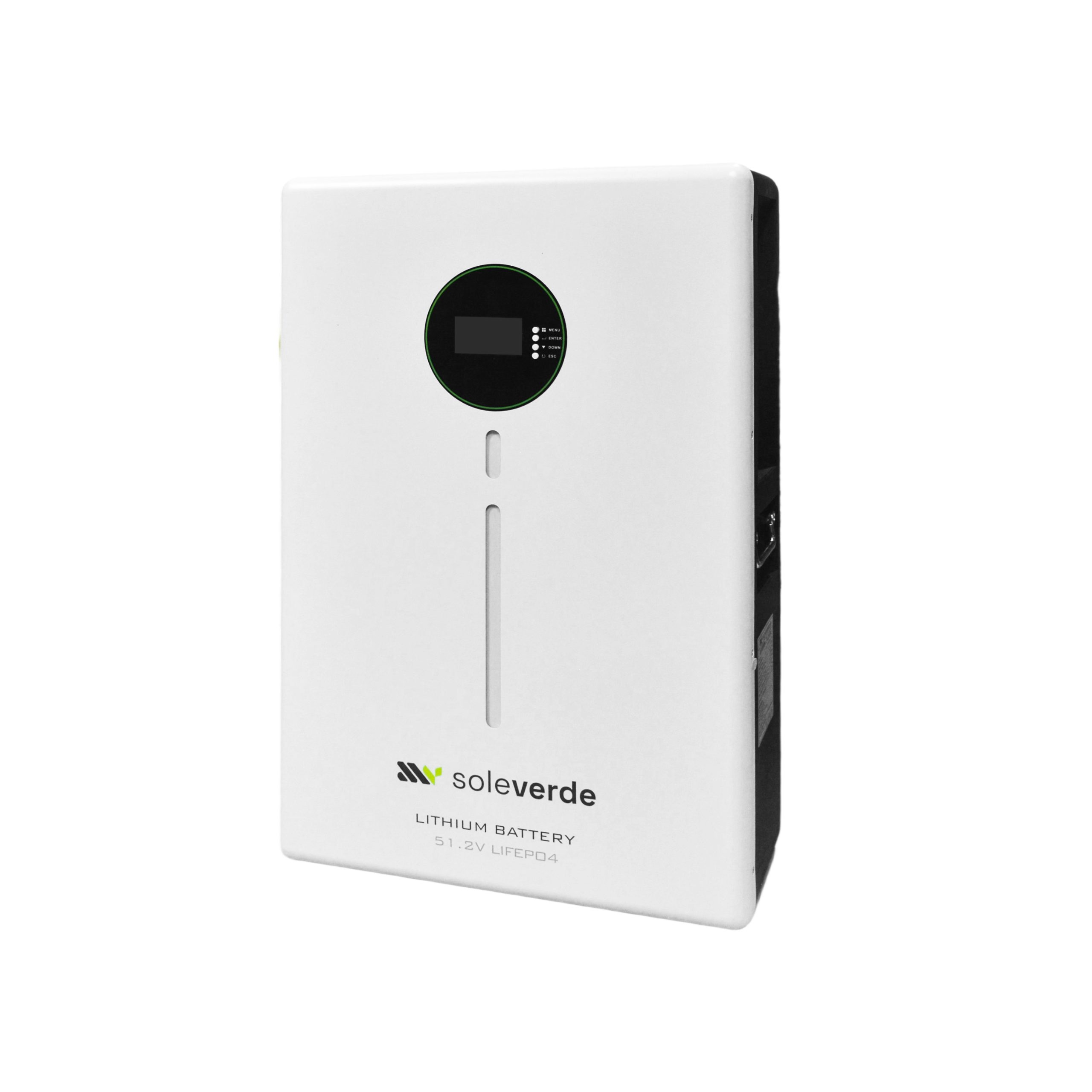

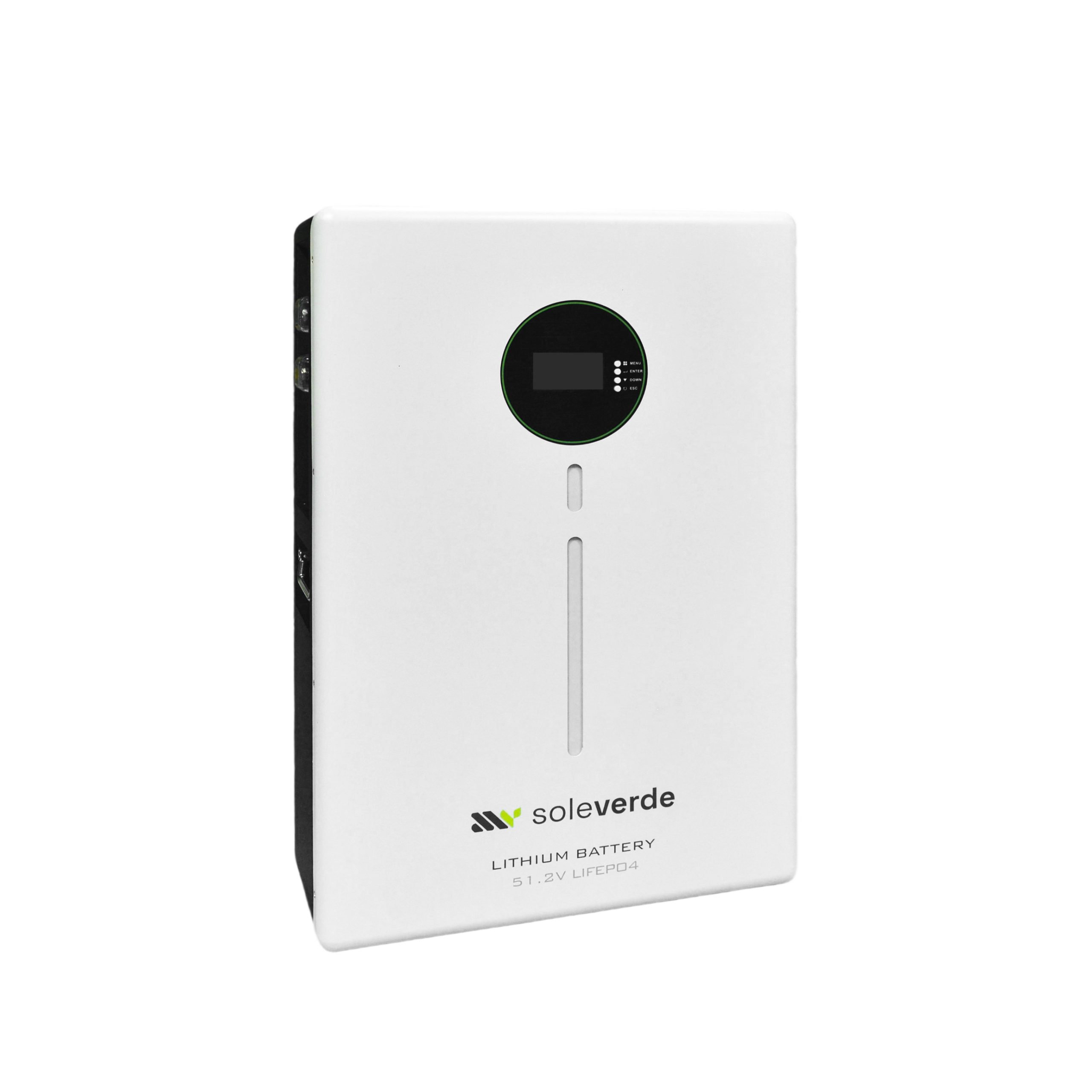

Soleverde 15KWH/51.2V Lithium Battery

1. Lithium iron phosphate power battery
2.  Higher energy density, smaller size, suitable for household use
3.  Support connection in parallel mode for expansion
4.  Photovoltaic system: This battery pack is specially designed for household photovoltaic systems.
5.  Battery management system (BMS): The built-in BMS of the battery pack monitors its operation to prevent the battery from operating beyond the design limit.
6.  Expandability: This battery pack can easily expand the battery pack.

Category:

Description

High-Performance Lithium Iron Phosphate Battery System

Flexible Expansion for Growing Energy Needs

Designed for scalability, this system supports parallel use of up to 15 units, allowing you to easily expand capacity as your energy requirements increase. It is compatible with multiple battery types—both new and old, and even allows customizable mixed parallel use with lead-acid batteries, ensuring seamless integration with existing power setups.

Advanced Lithium Iron Phosphate Technology

Experience superior energy performance with a battery chemistry known for its stability and long lifespan.

  • ≥5000 charge–discharge cycles, significantly outperforming ordinary factory batteries (typically 3000 cycles)

  • Built with flame-retardant materials for enhanced thermal resistance and safety

  • High discharge rate, low energy loss, and 95% depth of discharge for maximum efficiency

  • Equipped with multiple sleep and wake-up modes to reduce power consumption

Intelligent Multi-Level Safety Protection

At the core of the system is a BMS Intelligent Battery Management System, providing:

  • Real-time monitoring of voltage, current, and temperature

  • More accurate performance data

  • Comprehensive protection against electrical faults
    This ensures peak performance and long-term safety under all operating conditions.

Reliable Home Backup Power

Stay powered at every critical moment. Even during outages or in remote, electricity-scarce areas, the system can operate off-grid through solar energy, providing complete energy independence and peace of mind.

Built for Extreme Environments

Engineered to perform in harsh conditions, the battery operates smoothly in temperatures from –10°C to +50°C.
An integrated automatic heating function maintains optimal performance even when temperatures drop below 0°C.

Versatile Applications

This power system is ideal for a wide range of scenarios:

  • Home Energy Storage

  • Industrial Energy Storage

  • Photovoltaic (Solar) Systems

  • RV Power Supply

  • Grassland & Pastoral Power Needs

  • Island & Fishing Boat Operations

  • Mountain Electrical Supply

  • Outdoor Camping

  • Night Market Lighting
    And much more—its possibilities are broader than you imagine.





Model LC100512
Battery 51.2V 100ah lithium battery
Available Capacity 15360WH
Chemical formula of battery LiFePO4
Maximum continuous discharge current 100A
Rated voltage 51.2V|DC
Voltage range 43.2V-58.4VDC
Maximum output power 5120W
Maximum charging voltage 58.4V±0.2VDC
Recommended charging voltage 57.6V±0.2VDC
Recommended charging current 50A
Low power consumption Working   self-consumption ≤50mA, low power mode ≤200uA
Charging current limiting function 10A
Charge and discharge overcurrent long delay protection BMS100:>105A alarm, >110A/1S   protection BMS200:>205A alarm,>210A/1S protection
Discharge overcurrent instantaneous protection BMS100:≥150A/100ms   BMS200:≥250A/100ms
Overvoltage protection released Release   when discharge current>1A (51.2V machine: 59.2V/25.6V machine: 29.6V   overvoltage protection)
Over discharge protection released Connect   to charger to activate (51.2V machine: 43.2V/25.6V machine: 21.6V   over-discharge protection)
Charging overcurrent protection released Discharge   current>1A release
Over discharge current protection released Charging   current>1A release
Short circuit protection function Yes,   automatically released when charging
MOS high temperature protection MOS   tube over temperature protection
Battery temperature protection The   battery cell is protected against both low temperature (-20°C) and high   temperature (70°C)
Ambient temperature alarm Low   temperature protection -20℃, high temperature protection 75℃
Battery failure protection Single   cell voltage difference>1V
Display LCD   Display
Battery Depth of Discharge (DOD) ≥95%
Modules connection 1-15
communication RS232,   RS485, CAN as standard
Protection level IP21
Cycle times (standard charge and discharge at room temperature) ≥6000   times
Operating temperature range Discharge:   -10℃ – +50℃; Charge: +0℃ – +60℃
Storage temperature >1 month, 0~35℃; ≤1 month, -20~45℃
Terminal Type M8
Physical protection switch Air switch   protection
Installation Wall-mounted
Depth × width × height (mm) 165*365*630
Weight (net weight, for reference) KG 52
